6500 Aluminium: Project Saturnus

Current Build Phase

Design

The use and requirements of the future client determine the size, speed and GT of the yacht. After the first layout we start developing the general arrangement and building specs, followed by tank tests and engineering.

1 Design
2 Keel Laying
3 Joining Hull & Superstructure
4 Technical Launch
5 Delivery

Staggering deck space

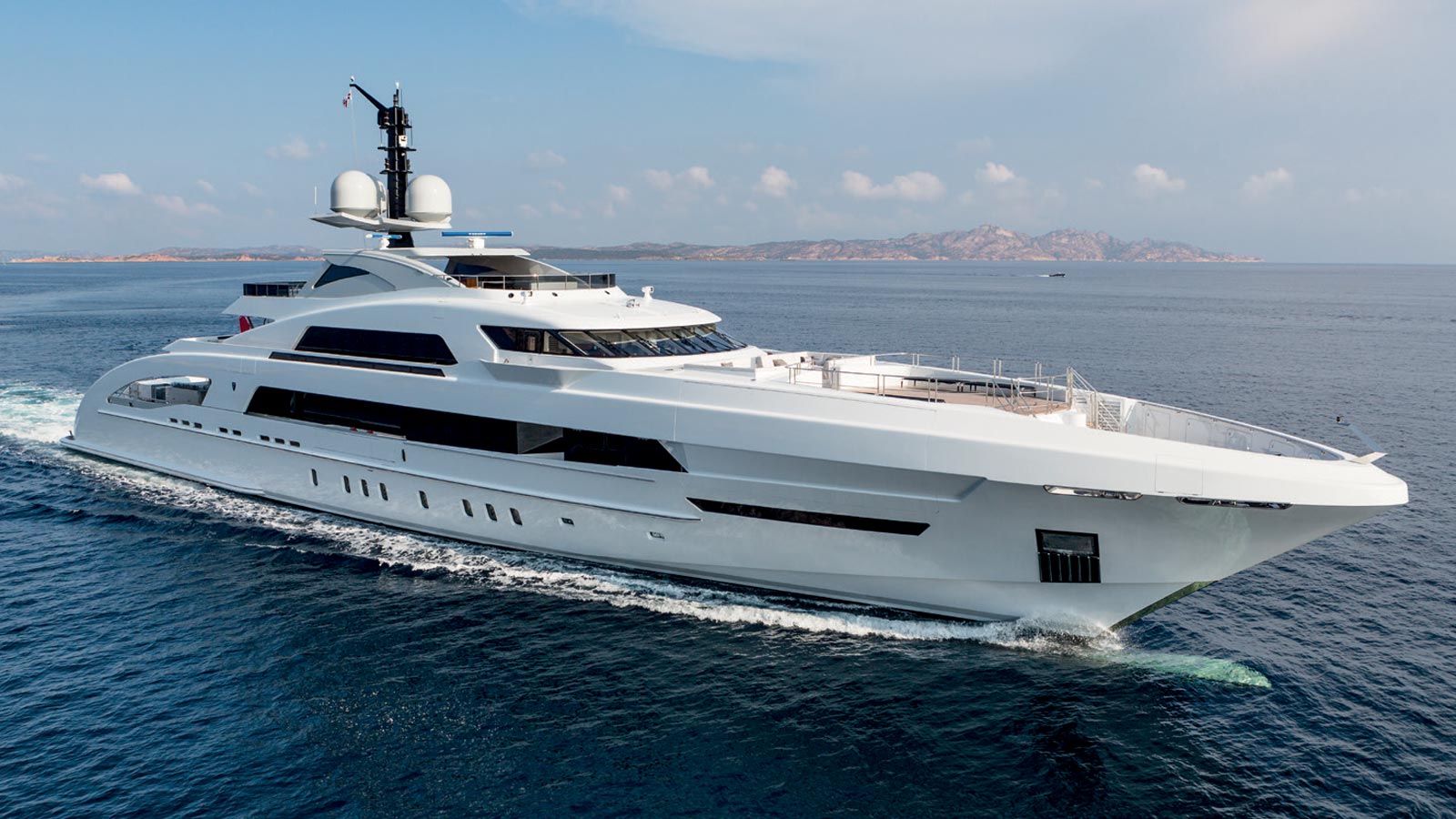

Saturnus is a 65-metre yacht with a Fast Displacement Hull Form. As a result, she has achieved what was considered impossible when thinking along conventional lines. Fortunately, Heesen does not. In a world where a 5 per cent gain is considered a triumph, this hull is more efficient than any other yet tested.

First impressions

Leave aside the technical and enjoy the lifestyle. Deck space is staggering with over 267 square metre on her three upper decks. The foredeck is both a helipad and sun terrace set over gull wing doors that open to reveal a full-beam tender garage.

Specifications

General

Hull type: FDHF

Exterior design: Omega Architects

Interior design: To be decided

Hull: Aluminium

Dimensions

Length over all: 65.00 metres / 213 feet 3 inches

Beam over all: 10.90 metres / 35 feet 9 inches

Draft (half load): 3.10 metres / 10 feet 2 inches

Tonnage: approx. 985 GT

Accommodations

Crew: 11

Guests: 12

Cabins: Full-beam Owner’s stateroom, VIP cabin, four double guest cabins

Technical Details

Maximum speed (half load): 24.5 knots

Range: 4,000Nm at 14 knots

Fuel capacity: 90,000 litres / 23,775 US Gallons

Fresh water: 30,000 litres / 7,925 US Gallons

Propulsion Details

Main engines: 2 x MTU 16V 4000 M93L

Maximum power: 2 x 3,440kW

Main generators: 2 x Zenoro, each 200kW

Bowthruster: HRP 165kW, electrically driven

Stabilisers: Quantum extendable, 2 fins, zero speed

General arrangement

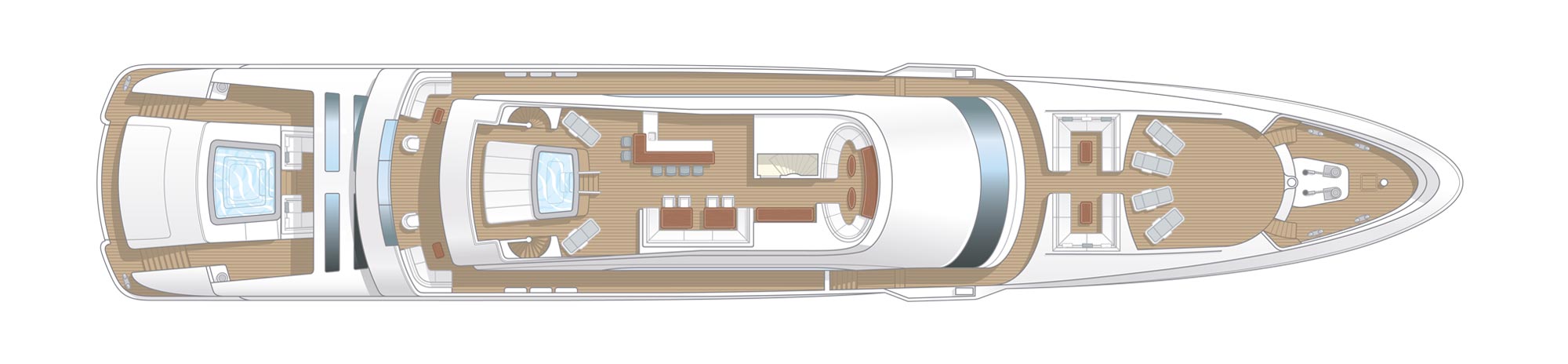

Sun deck

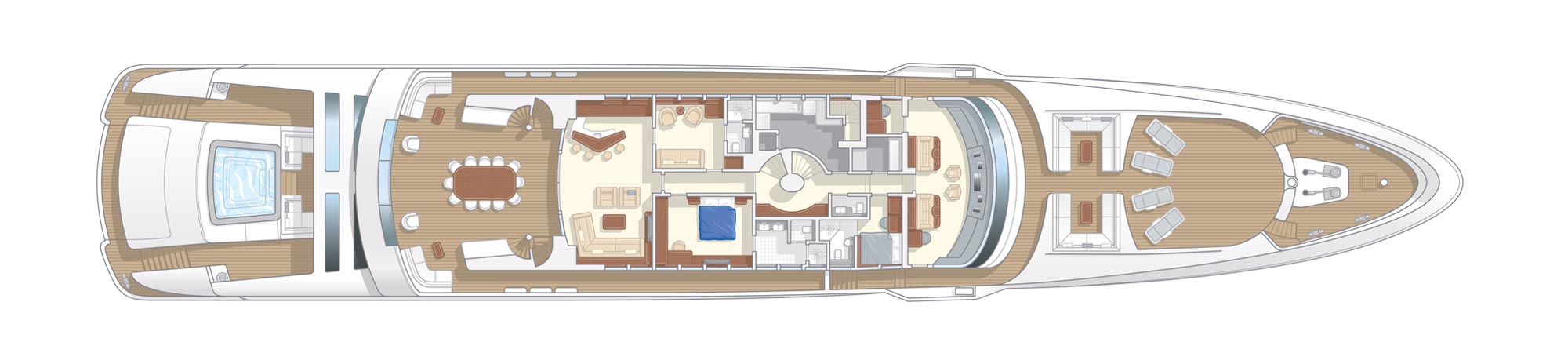

Wheelhouse deck

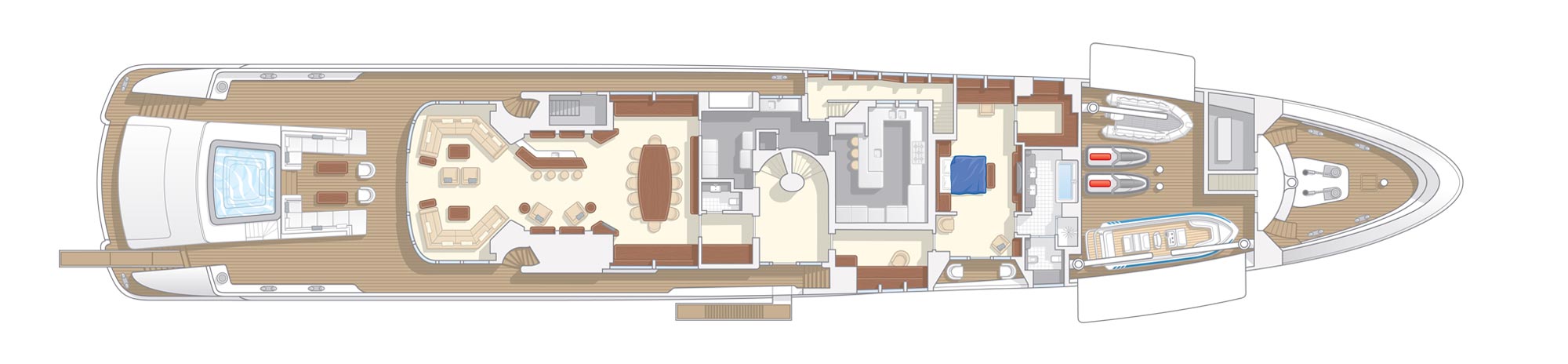

Main deck

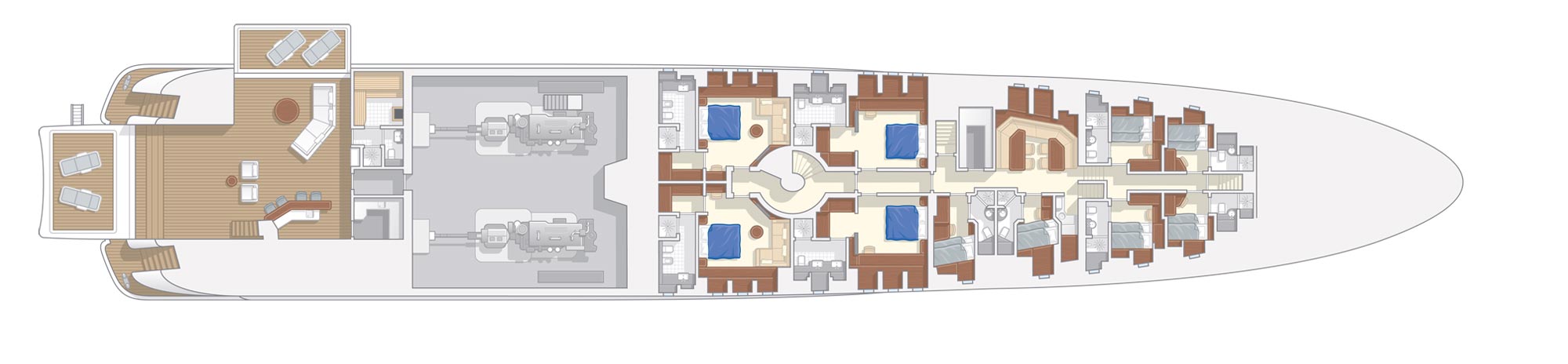

Lower deck
