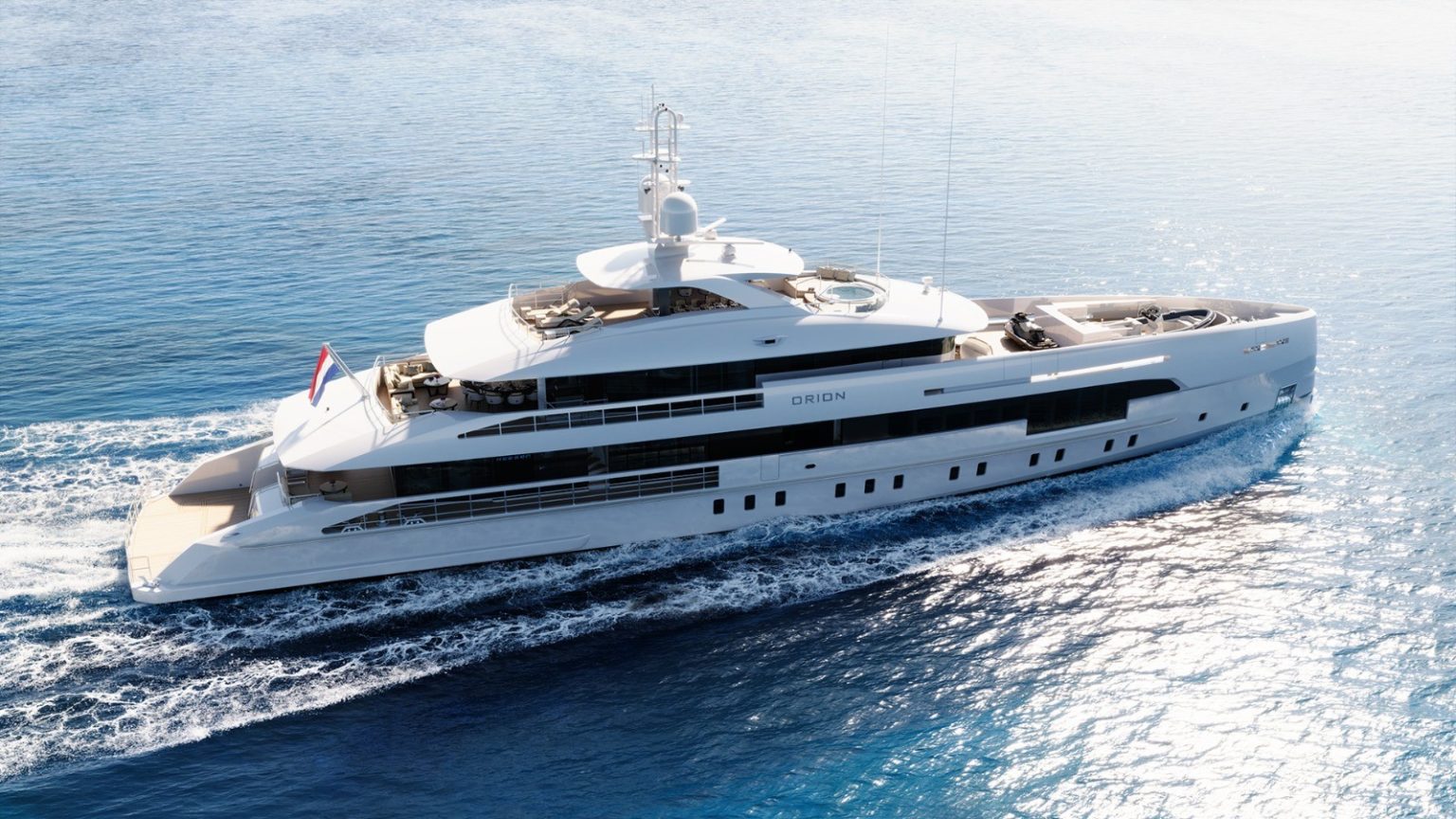

Orion - 2025

General

Hull type: FDHF

Exterior design: Omega Architects

Interior design: Cristiano Gatto Design

Hull: Aluminium

Dimensions

Length over all: 49.80 metres / 163 feet 4 inches

Beam over all: 9.10 metres / 29 feet 10 inches

Draft (half load): 2.15 metres / 7 feet 1 inch

Tonnage: Approx. 499 GT

Accommodations

Crew: 9

Guests: 12

Cabins: Full-beam owner’s stateroom, one full-beam VIP suite, two double guest suites and two twin guest suites

Technical Details

Maximum speed (half load): 16.3 knots (Diesel direct) / 9 knots (Diesel electric)

Range: 3,750Nm at 12 knots

Fuel capacity: 47,000 litres / 12,416 US gallons

Fresh water: 16,000 litres / 4,200 US gallons

Propulsion Details

Main engines: 2 x MTU 12V 2000 M61

Maximum power: 2 x 600kW

Main generators: 2 x Zenoro variable speed DC, 1200/2000 RPM, max. 209kW each

Bowthruster: ZF-Marine 90kW, electrically driven

Stabilisers: Naiad Dynamics, 2 fins, type 720, zero speed
