Ventura - 2013

5000 Aluminium

Two suites

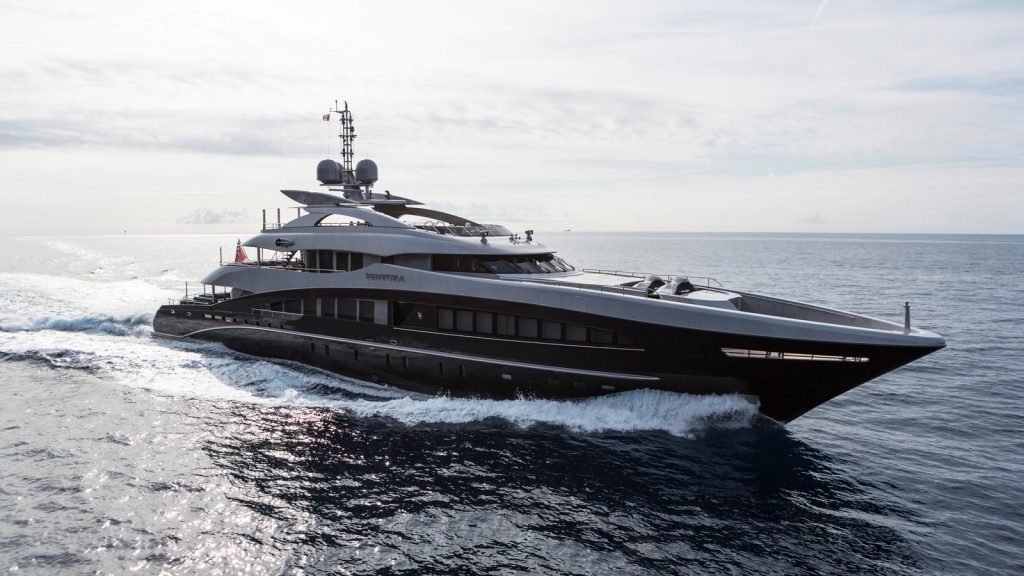

This streamlined 50-metre all aluminium yacht, with exterior lines by Frank Laupman from Omega Architects, is the third in the 5000 Aluminium class and sister ship to the multi-award winning Satori and Ice Angel. However, the layout of Ventura is completely different from her sister vessels. The owners chose to have two suites: a romantic one with panoramic 280 degree views on the bridge deck aft and a second "passage suite" which will be more practical when under way, traditionally located forward on the main deck.

First impressions

The owners chose a custom dark metallic gray for the hull and a light metallic grey for the superstructure. This innovative colour scheme gives Ventura a very elegant and distinctive look.

Step aboard

Acclaimed Italian designer Francesco Paszkowski created the sophisticated minimalistic interior décor. The richly patterned polished ebony parquet floor contrasts with whitened oak panelling further enhancing this very chic environment. In total twelve guests are accommodated in six suites. As well as the two master suites, on the lower deck there’s a full-beam VIP suite plus one twin and two double suites.



Hull type: Semi-displacement

Exterior design: Omega Architects

Interior design: Francesco Paszkowski Design

Hull: Aluminium


Length over all: 49.80 metres / 163 feet 4 inches

Beam over all: 9 metres / 29 feet 6 inches

Draft (half load): 2.50 metres / 8 feet 2 inches

Tonnage: approx. 499 GT


Crew: 9

Guests: 12

Cabins: Full-beam owner’s stateroom, full-beam VIP suite, two double guest suites and two twin guest suites

Technical Details

Maximum speed (half load): 23 knots

Range: 3,200Nm at 11 knots

Fuel capacity: 68,800 litres / 18,200 US Gallons

Fresh water: 16,200 litres / 4,300 US Gallons

Propulsion Details

Main engines: 2 x MTU 16V 4000 M90

Maximum power: 2 x 2,720kW

Main generators: 2 x Kilo-Pak, each 99kW

Bowthruster: HRP 90kW, hydraulically driven

Stabilisers: Naiad Dynamics, 2 fins, type 720, zero speed

General arrangement

Sun deck

Wheelhouse deck

Main deck

Lower deck

Sisterships 5000 Aluminium Semi-displacement <2019
