Asya - 2015

47m Steel

Successful design platform

Asya is the expression of our ability to create unique and award-winning vessels with naval architecture and engineering based on a proven and successful design platform.

First impressions

Asya is the second in the restyled 47m class, a breed of yachts whose exterior design by the talented Frank Laupman of Omega Architects combines elegant traditional lines with contemporary flair, a marriage emphasised by the continuous glass windows and matching black paintwork on the main deck and upper decks.

Step aboard

Simplicity as the ultimate form of sophistication is the guiding principle of Asya’s interior design. Her sophisticated interior from the London-based and award-winning studio Bannenberg & Rowell has a distinctly Far Eastern, restful feel, inspired by the designs of Dieter Rams, Frank Lloyd-Wright and Tadao Ando.

Specifications

General

Hull type: Displacement

Exterior design: Omega Architects

Interior design: Bannenberg & Rowell Design

Hull: Steel

Dimensions

Length over all: 46.70 metres / 153 feet 2 inches

Beam over all: 8.83 metres / 29 feet

Draft (half load): 2.91 metres / 9 feet 7 inches

Tonnage: approx. 499 GT

Accommodations

Crew: 10

Guests: 12

Cabins: Full-beam owner’s stateroom, two double guest cabins and two twin guest cabins each with one pullman bed

Technical Details

Maximum speed (half load): 15 knots

Range: 4,000Nm at 12 knots

Fuel capacity: 60,000 litres / 15,850 US Gallons

Fresh water: 20,000 litres / 5,280 US Gallons

Propulsion Details

Main engines: 2 × MTU 8V 4000 M63

Maximum power: 2 x 1,000kW

Main generators: 2 x Kilo-Pak, each 99kW

Bowthruster: ZF-Marine 90kW, hydraulically driven

Stabilisers: Naiad Dynamics, type 621, zero speed

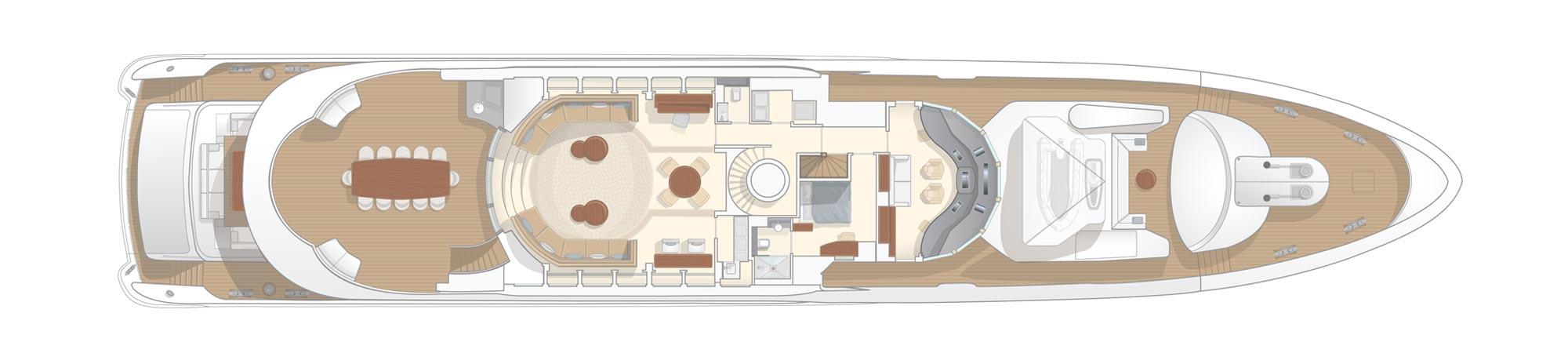

General arrangement

Sun deck

Wheelhouse deck

Main deck

Lower deck

Sisterships 47m Steel
